model

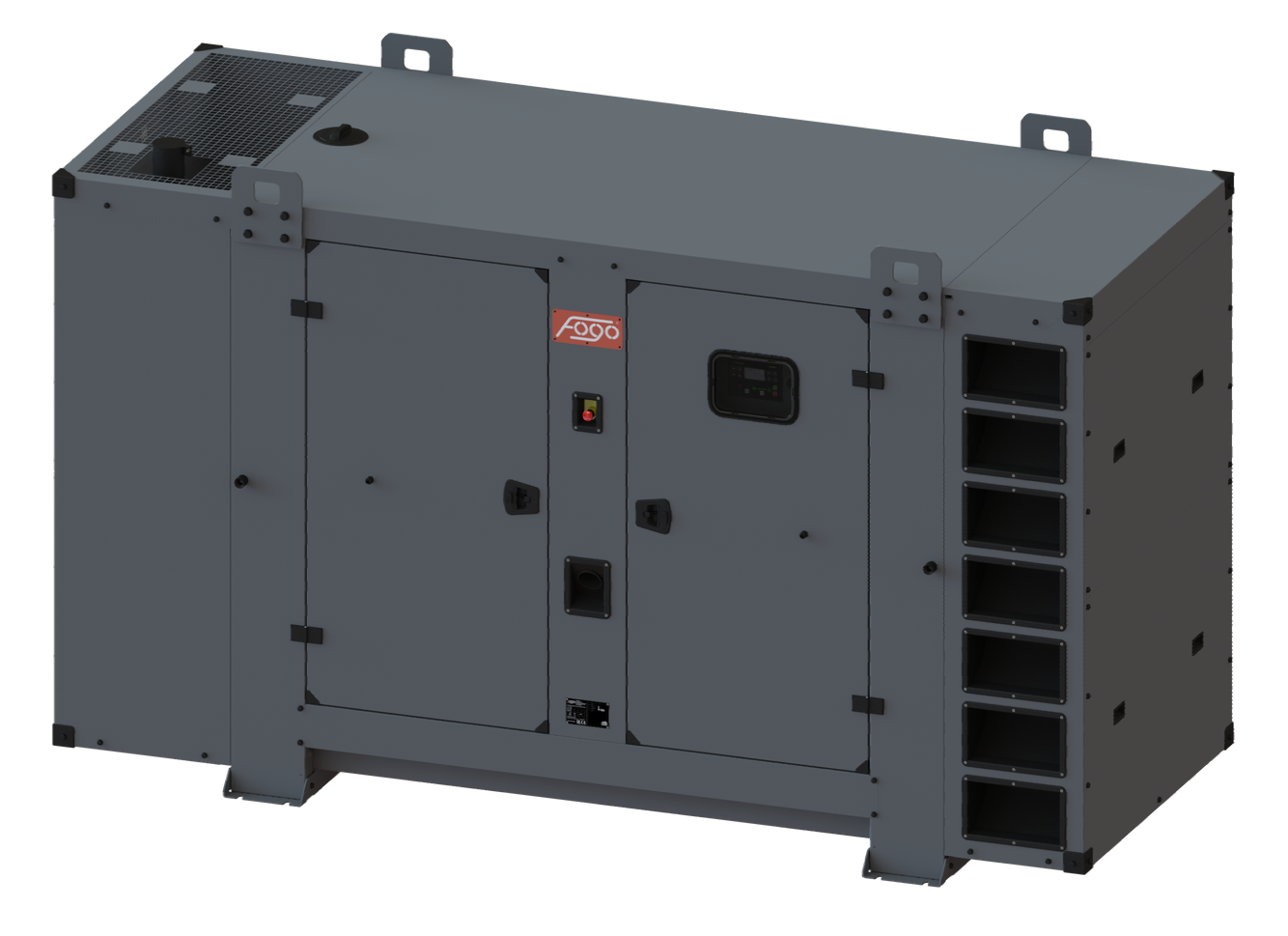

FD 250 F-Q
basic information
| Maximum power ESP | 275.0 kVA / 220.0 kW |
| Nominal power PRP | 250.0 kVA / 200.0 kW |
| Frequency | 50 Hz |
| Voltage | 400V |
| Engine | Yuchai D275R2-MP-ETA-610 |
| Alternator | A4Gen A4G274-250 |
| Controller | ComAp InteliLite4 AMF 25 |
| Build class | G3 (wg ISO 8528-5) |
| Emission standard | Stage II |
| Fuel system | mechanical pump |
selected advantages
| Short circuit current 300% for 10s |
| AVR with 3-phase measurement with stabilization +/- 1% |
| Generator protection in manual and automatic operation mode |
| Extended operating autonomy thanks to large tanks as standard |
| Environmentally friendly design |
| Stackable in warehouse and transport |
| 4 points for safe and stable lifting with an overhead crane/crane |
| Easy service access |
| Possibility of installing additional sockets and protections |
| UV protection for your controller |
| Made in Poland |
available versions
fd 250 F-q
fd 250 F-f
