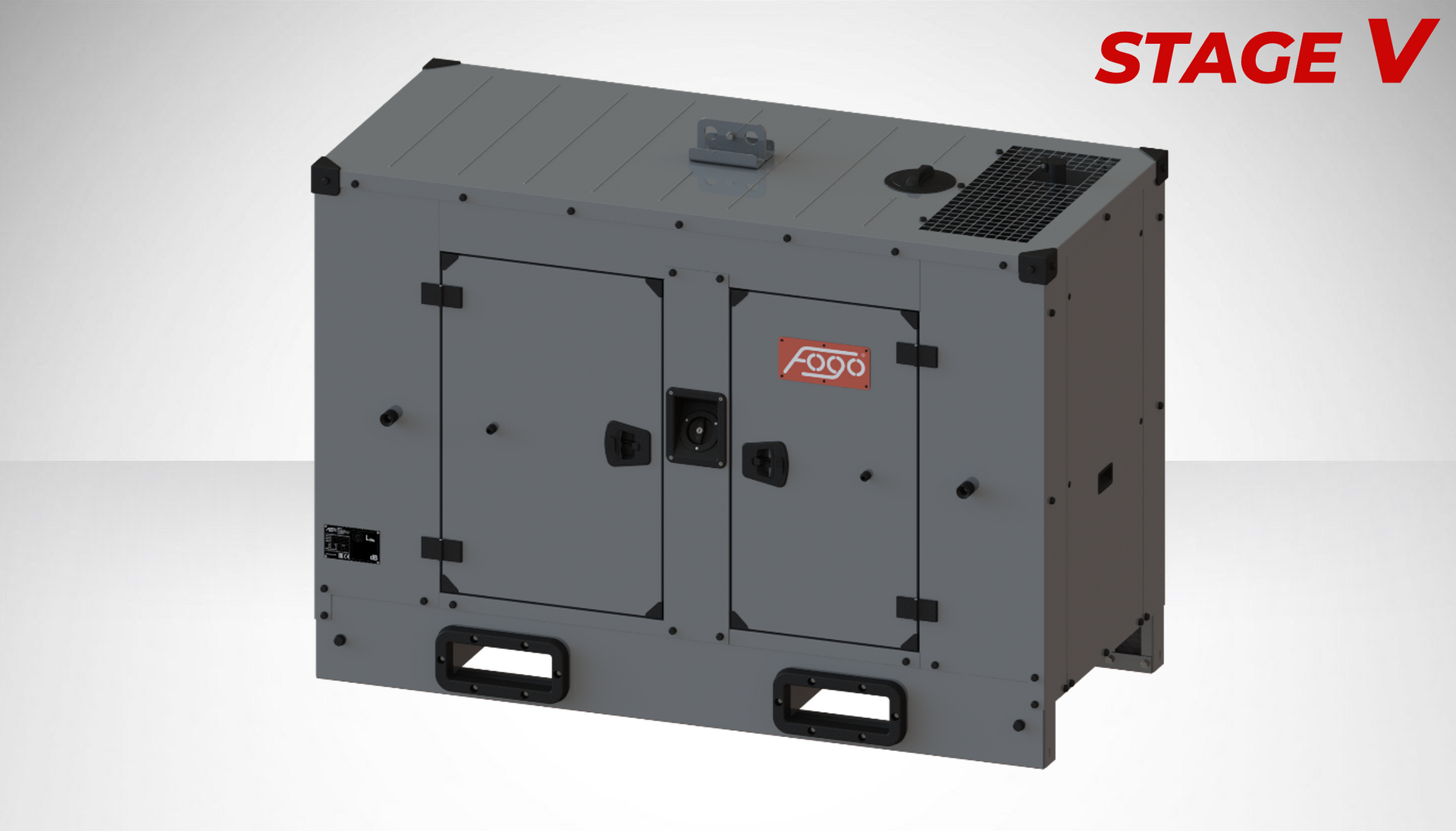

FD 20 P5-E
Diesel generators
22.0 kVA - 66.0 kVA
Ask about this generator
Features of the unit
| Engine | Perkins X404J-22G |
| Exhaust emissions | Stage V |
| Fuel system | direct injection |
| Speed regulation | mechanical |
| Frequency | 50Hz |
| ESP maximum power | 22 kVA / 18 kW |
| PRP rated power | 20 kVA / 16 kW |
| Fuel tank | 190 L |
| Alternator | Linz SLT18MD |
| Performance class | G3 (wg ISO 8528-5) |
Characteristics
- Digital voltage regulation +/- 0,25 %
- Low disturbance level THD <3.5%
- Alternator short circuit capacity 250% In (optionally 300%)
- class H insulation
- Protection index IP23
- Performance class G3 (according to ISO 8528-5)
- Ready to load just after start
- AMF and MRS functionality and protection
- Autonomy 38,8 h with 75% load
- Reinforced skids, with dedicated forklift holes

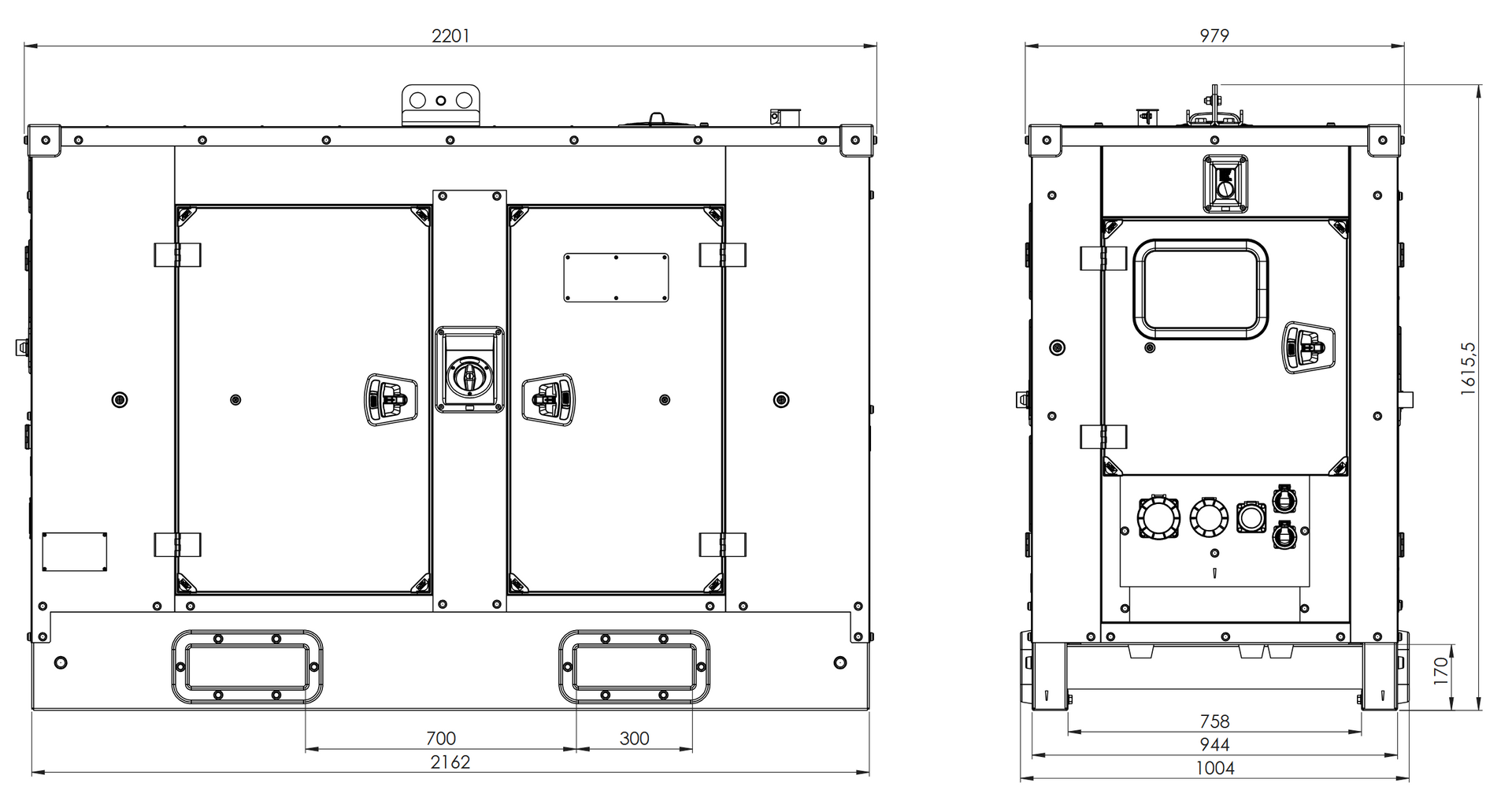

Unit specification sheet
ComAp driver
InteliLite AMF 25
| Controller type: ComAp InteliLite AMF 25 |
| Support of Dual AMF/MRS applications |
| Direct communication with EFI engines |
| Total remote monitoring and control |
| Intuitive operator interface, adjustable Main Screen |
| Real time clock |
| Comprehensive history log with up to 350 events |
| 3 phase true RMS current and voltage measurement |
| Both mains and generator voltage detection |
| Active/Reactive Power and Power Factor per phase measurement |
| Run Hours counter with source selector |
| 3 maintenance timers (counting even under zero) |
| Multipurpose flexible timers (also for rental) |
| Battery voltage measurement |
| Complete engine and alternator protection |
| CAN modules support |
| USB port on-board |
| 2 slots for plug-in modules |
| Plug-in module concept for more capabilities (RS232, RS485, Ethernet, GPRS, 4G/LTE, Modbus, SNMP, emails, SMS, I/Os) |
| Cloud-based monitoring and control via WebSupervisor) (optional module required) |
| Geofencing and tracking via WebSupervisor (optional module required) |
| Control and monitoring over SMS (GSM module required) |
| 3 levels of password protection |
| In-built PLC, complemented with a monitoring/debugging tool, for additional functionality, if required |
| Spare inputs and outputs available by default: binary input – 2, binary output – 1, analogue input – 3 |
| A version for low temperature is also available |
Perkins engine
X404J-22G
| Manufacturer | Perkins |
| Type | X404J-22G |
| Made in | Great Britain |
| Engine Power | 18,5 kW |
| Emission standard | stage V |
| Rotation per minute | 1500 rpm |
| Engine governor | mechanical |
| Governor class | G3 (wg ISO 8528-5) |
| Displacement | 2,2 l |
| No of cylinder | 4 |
| Fuel system | direct injection |
| Electrical system | 12 V |
| Cooling system capacity | 7,0 l |
| Oil pan capacity | 6,0 l |
| Fuel type | Diesel (EN 590) |
Linz alternator
SLT18MD
| Manufacturer | Linz |
| Type | SLT18MD |
| Made in | Italy |
| Nominal voltage | 400 V |
| Nominal power factor (cos φ) | 0,8 |
| Ambient temperature, altitude | 40 ºC, 1000m n.p.m. |
| Nominal Power | 20.0 kVA |
| Protection index | IP 23 |
| No of bearing | single bearing |
| Coupling | direct |
| Technology | brushless |
| Short circuit maintaining capacity | 250% 10s |
| Efficiency | 86,1 % |
| Insulation class | H |
| Total harmonic content THD | <3,5 % |
| Reactance Xd'' | 9 % |
| Voltage regulator type | AVR HVR-11 |
| Voltage measurement | 3 phases |
| Voltage accuracy | +/- 0,25 % |
| AVR supply system | Auxiliary winding |
